Ubiquiti AF60-HD, AirFiber 60 HD, 60GHz, 1xGigabit, 1xSFP+, GPS, 3.8Gbps/6Gbps (bonding), 2+km
Κωδικός e-Wireless: 1001.441

BrandUbiquiti MPNAF60-HD
535.00
χωρίς ΦΠΑ 431.45
Σε Απόθεμα
+
Wishlist
Αποστολές & Επιστροφές
Τρόποι πληρωμής
Γιατί e-Wireless;
Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

E-WIRELESS

Αναλυτική Παρουσίαση

    2 km, multi-gigabit, 60 GHz bridge with SFP+ support

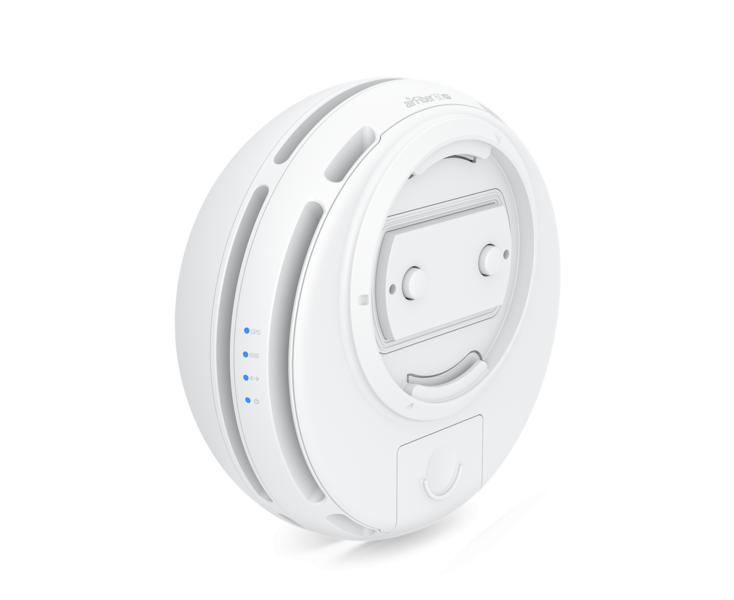

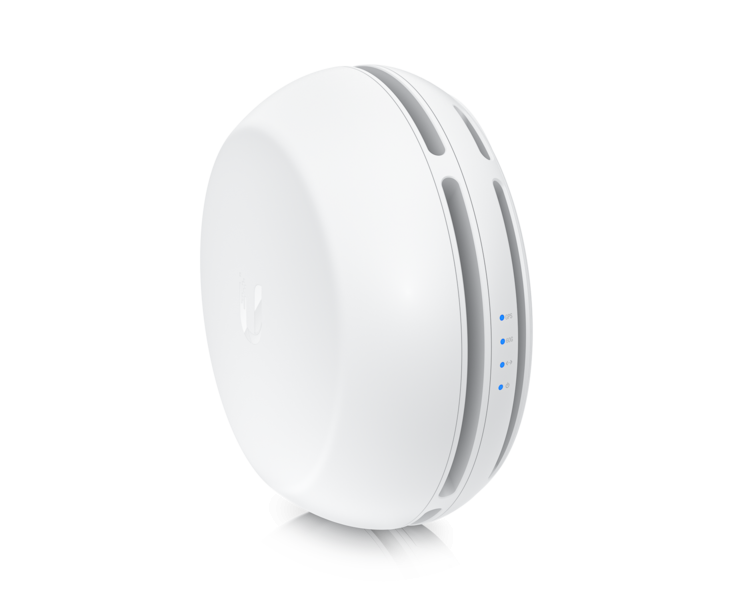

    The airFiber 60 HD (AF60 HD) is a 60 GHz radio designed to create superior, mid-range, point-to-point (PtP) links up to 2 km. The AF60 HD delivers low-interference, low-latency throughput within the 60 GHz spectrum. Compact and highly durable, the AF60 HD also features integrated GPS and a Bluetooth management radio to simplify setup, configuration, and monitoring. This bridge is ideal for ISPs looking to maximize signal linking with cost-effective equipment.


    Features:

    • Low-interference, 60 GHz spectrum
    • Up to a 2 km link range
    • Supports channel bonding to achieve up to a 6 Gbps throughput rate
    • 10G SFP+ port
    • terragraph certified
    • Integrated GPS
    • Link planning support via ispdesign.ui.com
    • Simple, Bluetooth-powered setup with the UISP™ Mobile app


    Note: Price shown is for a single unit. airFiber is normally purchased in pairs to form a single link.

    Managed with UISP application (previously UNMS): Version 1.4.0-beta.3 and higher
Mechanical
DimensionsØ189 x 89 mm (Ø7.4 x 3.5")
WeightWithout Mount: 1.8 kg (3.9 lb)
With Mount: 2.95 kg (6.5 lb)
Enclosure MaterialsAluminum Alloy, UV Stabilized Plastic
Mount MaterialStainless Steel (SUS304)

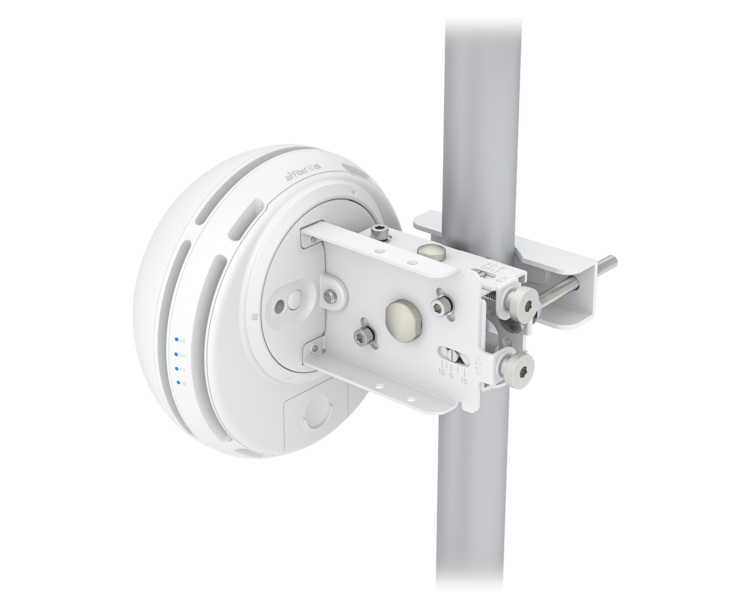

Mount60G Precision Alignment Pole Mount (Included)
Wind Loading64 N at 200 km/h (14.39 lbf at 125 mph)
WeatherproofingIPX6
Hardware
ProcessorQuad-Core ARM® Cortex® A72 at 1.6 GHz
Memory2 GB DDR4

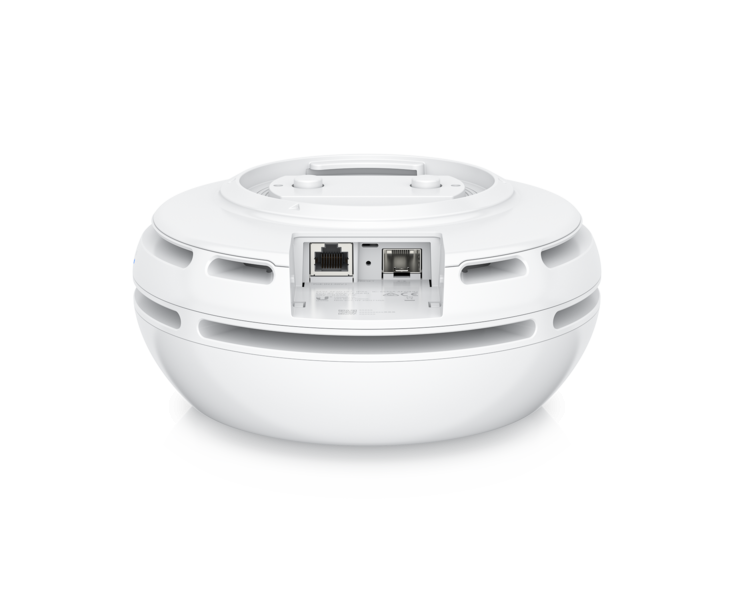

Networking Interfaces(1) 10/100/1000 Mbps RJ45 Ethernet
(1) 1/10 Gbps SFP+
ButtonFactory Reset
RF ConnectionsInternal
Max. Power Consumption29.31W
Power MethodPassive PoE 4-Pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-Pairs (4, 5+; 7, 8-)
Power Supply48VDC, 0.65A Gigabit PoE Adapter (Included)
Supported Voltage Range48VDC ± 10%
ESD/EMP ProtectionAir/Contact: ± 24kV
Operating Temperature-40 to 55° C (-40 to 131° F)
Operating Humidity5 to 95% Noncondensing
CertificationsFCC, IC, CE, terragraph

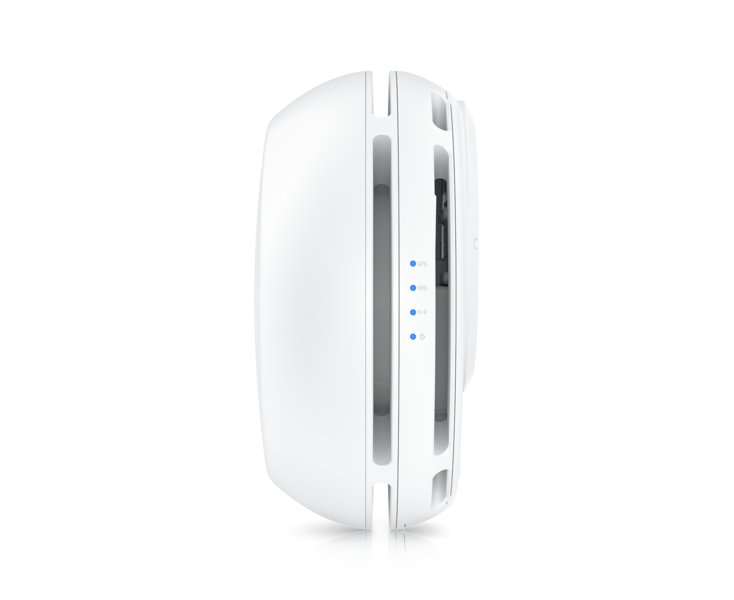

LEDs
PowerFlashing White: Bootup in Progress
White: Not Connected to UISP™ Application
Blue: Connected to UISP Application
EthernetFlashing Blue: Ethernet Activity
GPSBlue: Receiving at Least (4) GPS Satellite Signals
60GBlue: Active Connection
System
Maximum Throughput
60 GHz

3.8 Gbps/ 6 Gbps (with channel bonding enabled)
Maximum Range2 km
EncryptionWPA2-PSK (AES)
Uplink/Downlink Ratio50/50
Software
OSairOS®
ModesPtP Only
ServicesUISP, Ping Watchdog, Web Server, SSH Server, NTP Client, System Log, Device Discovery
UtilitiesBeamform Info, Discovery Utility, Ping, Trace Route, Speed Test
NetworkBridge Mode
Wireless SettingsGPS Sync
Management interfaceBluetooth management for easy setup over UISP App
WEB UI
Minimum Software RequirementsModern Web Browser or Android/iOS Smartphone
RF
Operating Frequency*57 to 66 GHz
* Depends on regulatory region.
GPSYes
Channel Bandwidth2160 MHz/4320 MHz (With Channel Bonding Enabled)
Operating Channels58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz*
*It depends on the channel bandwidth
BeamwidthHPOL: NaN (The Antenna is Only Vertically Polarized)
VPOL: 3°
Elevation: 3°
Electrical Downtilt
