MikroTik RBD53G-5HacD2HnD-TC&RG502Q-EA, Chateau 5G, 3dBi, 26dBm 2x2 @ 2.4GHz, 5.5dBi, 26dBm, 2x2 @ 5GHz, Quad-Core 716MHz, 256MB, 5xGigabit, 1xMicro SIM, 1xUSB, L4
Κωδικός e-Wireless: 1002.344

BrandMikrotik MPNRBD53G-5HacD2HnD-TC&RG502Q-EA
578.00
χωρίς ΦΠΑ 466.13
Σε Απόθεμα
+
Wishlist
Αποστολές & Επιστροφές
Τρόποι πληρωμής
Γιατί e-Wireless;
Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

E-WIRELESS

Αναλυτική Παρουσίαση

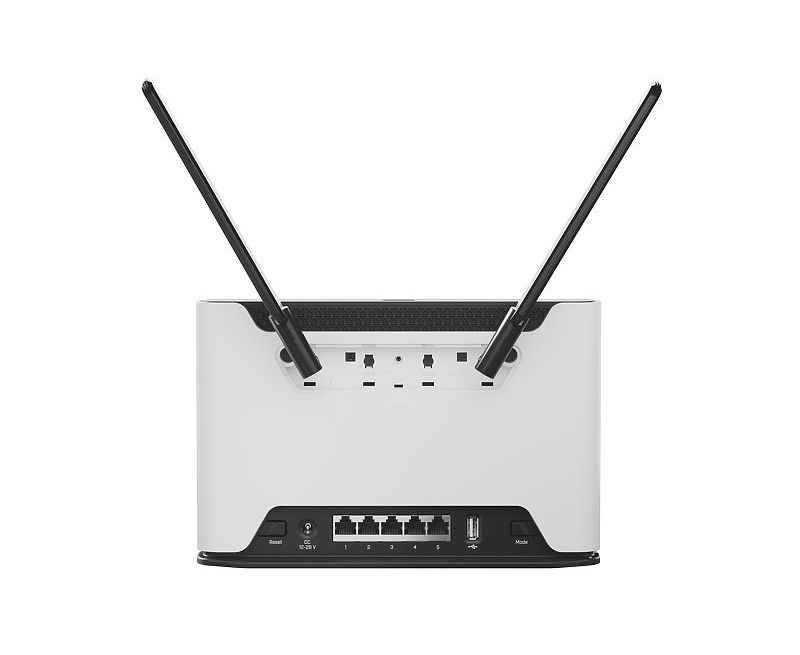

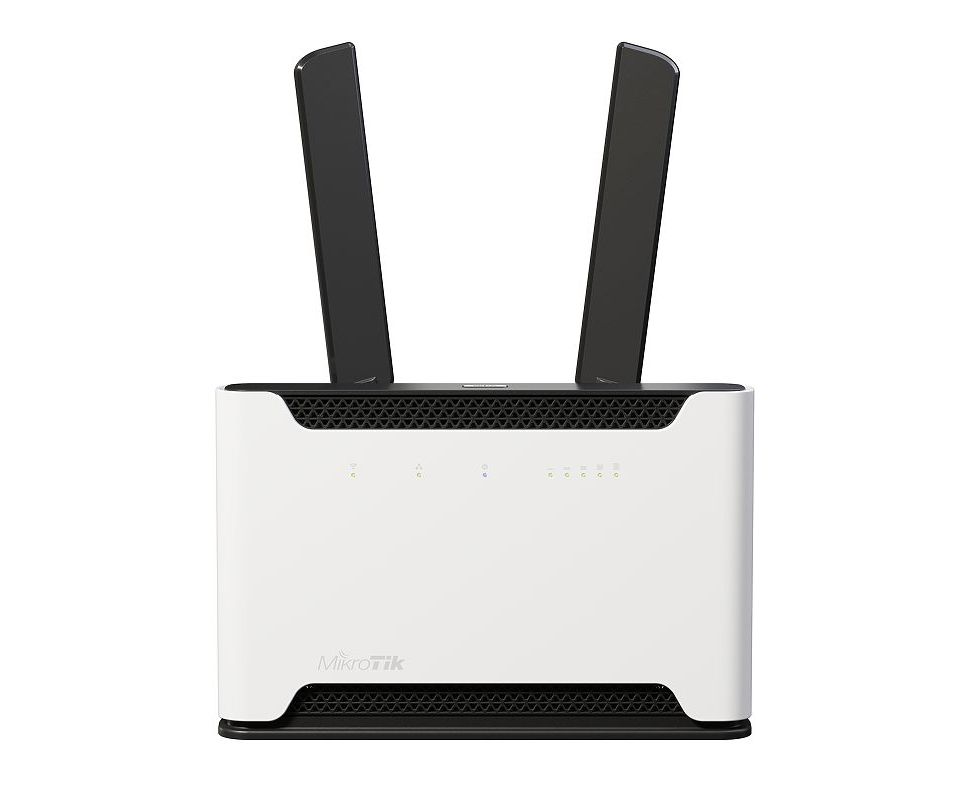

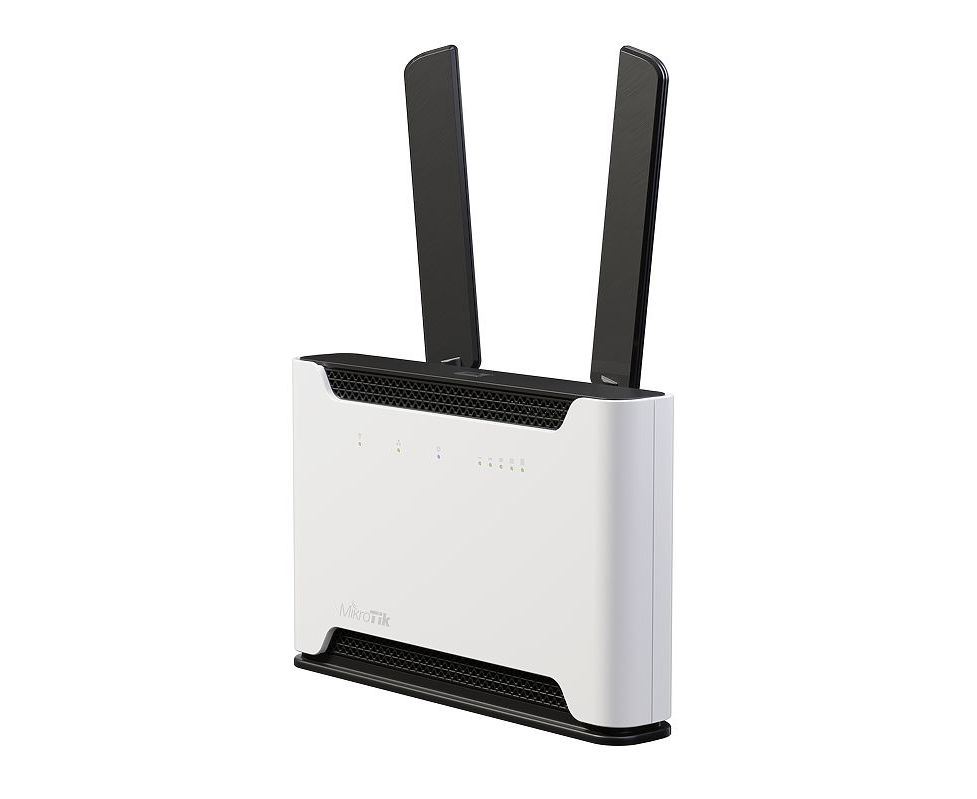

Chateau 5G s a high-speed, dual-band home access point with LTE/5G support – for really fast Internet anywhere, anytime. There are many options to choose from, depending on your needs: from CAT4 LTE up to the CAT20 LTE and the ultra-fast 5G. But LTE is not the only option – Chateau also features 5 x Gigabit Ethernet ports and a full size USB port.

Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. For example, a client can simultaneously use the 2.4 GHz channel for all household mobile devices and reserve the 5 GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.

Chateau can be customized: you can choose a variety of labels, we can print your branding, if necessary. And there is another great feature – you can use TR-069 technology to create a custom remote client management option. You can choose how much control your clients need and which features of the highly versatile RouterOS they get to use. Some operators use this to allow users to configure the router via the same web-page they use to pay bills, others restrict novice users from meddling with the settings to provide better browsing experience in the long run.

Let’s make more clients happy with MikroTik Chateau 5G!

Specifications

Details
Product code D53G-5HacD2HnD-TC&RG502Q-EA
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
Dimensions 240 x 156 x 44 mm
RouterOS license 4
Operating System RouterOS (v7 only)
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $530.00


Powering

Details
Number of DC inputs 1 (DC jack)
DC jack input Voltage 12-28 V
FAN count Passive


Mobile

Details
3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands 6 (850 MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) / 19 (800 MHz) / 1 (2100MHz)
LTE Category 20 (2.0 Gbps Downlink, 200 Mbps Uplink)
LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 18 (800 MHz) / 19 (800 MHz) / 20 (800MHz) / 26 (850MHz) / 28 (700MHz) / 32 (1500 MHz)
LTE TDD bands 38 (2600MHz) / 39 (1900MHz) / 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz) / 34 (2000 MHz)


Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 3
Wireless 2.4 GHz chip model IPQ-4019
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 4
Wireless 5 GHz chip model IPQ-4019
Wireless 5 GHz generation Wi-Fi 5


Ethernet

Details
10/100/1000 Ethernet ports 5


Peripherals

Details
Number of SIM slots 1 Modem (Micro SIM)
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1


Other

Details
Mode button Yes


Certification & Approvals

Details
Certification CE, EAC, ROHS


Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 26 -96
54MBit/s 22 -80
MCS0 26 -96
MCS7 21 -75
MCS9 19 -70
