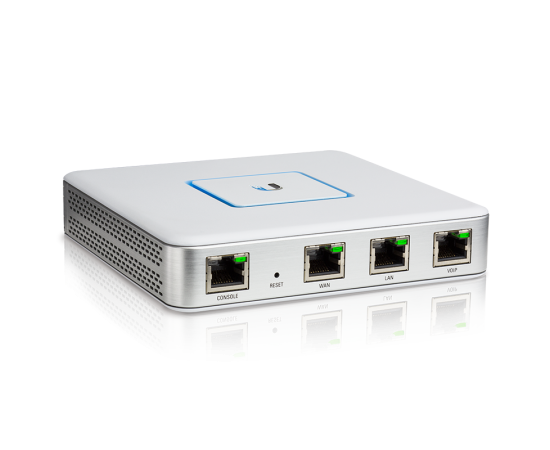

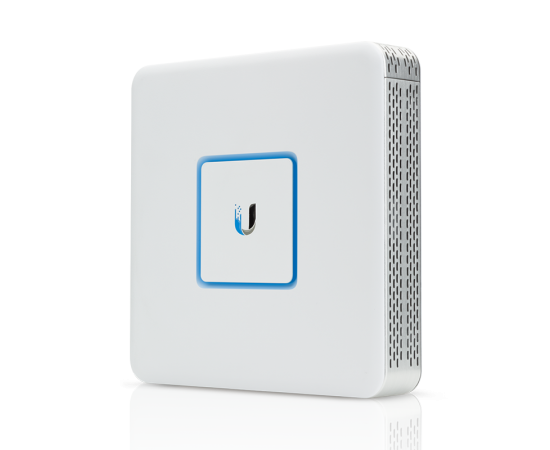

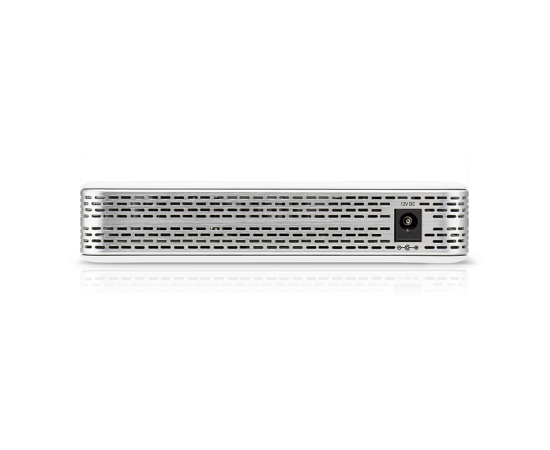

UniFi Security Gateway (USG), 500MHz Dual Core, 512MB DDR2, 2GB Flash, 3xGigabit
Ubiquiti Networks introduces the UniFi® Security Gateway, which extends the UniFi Enterprise System to encompass routing and security for your network. The UniFi Security Gateway combines advanced security features with high‑performance routing technology in a compact and cost ‑ effective unit. Capable of routing up to 1 million packets per second, the UniFi Security Gateway can be easily configured through the intuitive UniFi Controller software, which also manages the UniFi Access Points for wireless networking.
Additional features include:
- 3 Gigabit Ethernet ports
- 1 million packets per second for 64 byte packets
- 3 Gbps total line rate for packets 512 bytes or larger
- Integrated and managed with UniFi Controller v4.x
- Secure off site management and monitoring
- CLI management for advanced users
- Silent, fanless operation
Technical Specifications
Processor |
Dual-Core 500 MHz, MIPS64 |
On-Board Flash Storage |
2 GB |
Max. Power Consumption |
7W |
Power Supply |
12VDC, 1A Power Adapter (Included) |
Power Input |
9 to 24VDC, Supported Voltage Range |
Data Ports |
3x 10/100/1000 Ethernet Ports* |
Serial Console Port |
1x RJ45 Serial Port |
Packet Size: 64 Bytes |
1,000,000 pps |
Packet Size: 512 Bytes or Larger |
3 Gbps (Line Rate) |
Operating Temperature |
-10 to 45° C |
Operating Humidity |
10 to 90% Noncondensing |
Dimensions |
135 x 135 x 28.3 mm |
Weight |
366 g |
Wall-Mountable |
Yes |
Certifications |
CE, FCC, IC |
Για την καλύτερη απόδοση και σωστή λειτουργία όλων των συσκευών πρέπει σε κάθε εγκατάσταση να χρησιμοποιούνται τα εγκεκριμένα υλικά
Προσοχή!
Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. (ΦΕΚ 47/2002, ΠΔ44 Άρθρο 1, Παρ 2), το προϊόν αυτό είναι εγκεκριμένο με τον τύπο CE (!).
H νόμιμη χρήση των προϊόντων που χρησιμοποιούν τη ζώνη συχνοτήτων 2400 – 2483,5 MHz, πρέπει να έχουν μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p. Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και η προσθήκη ισχύος της κεραίας.
Αρμόδια για την εποπτεία του φάσματος στην Ελληνική Επικράτεια είναι η E.E.T.T.
